Industrial Incremental Rotary Encoder Outer Diameter Φ58mm Max Speed 6000RPM

Name: Industrial Incremental Rotary Encoder Outer Diameter Φ58mm Max Speed 6000RPM
Brand: Toky
Price: 1 USD

Brand Name : Toky

Model Number : HY58 series

Certification : CE

Place of Origin : China

MOQ : 5sets

Payment Terms : T/T

Delivery Time : 15~35days

Packaging Details : Carton

Usage : Industrial

Power supply voltage : DC 5V±5% or DC 8~26V±5%

Current consumption : ≤120mA, DC 5V≤80mA

Duty ratio : 50±25%

Working environment : -20～85℃ 35～85%RH

Max output frequency : 300k Hz

Response Time : ≤1us

Protection : IP54

Contact Now

HY58 Series Incremental Rotary Encoder Outer diameter Φ58mm Max Speed 6000RPM

1. Features and advantages:
a). Outer diameter Φ58.
b). Shaft Φ8/10/12/14/15mm.

c). Cable outgoing, 2 meters length.

d). Optional output mode.
e). Output Frequency MAX 300 KHz.
f). Max Speed :6000 RPM
g). Protection :IP54

2. Model specification:
Industrial Incremental Rotary Encoder Outer Diameter Φ58mm Max Speed 6000RPM

3. Technical parameter:

Power supply	Voltage		Line drive output DC 5V ±5% or output DC 8~26V ±5%	Input and Output	Response time	≤1µs (when cable length is 2m)
	Ripple wave		≤3%rms		NPN open collector output	Negative logic (for low-level) Load current≤30mA
	Current consumption		≤120mA, DC 5V power ≤80mA		Push and pull output	Output voltage≥ power voltage - 3V DC Load current≤30mA output current ≤10mA
Output wave	Signal mode		A, B phase+Z phase (zero position)
	Max response frequency		300kHz		Voltage output	Output voltage≥power voltage - 3V DC Output current≤30mA
	Max speed		(Max frequency/resolution)x60
	Duty ratio		50±25%		Line drive output	Output voltage≥2.5V DC Load/ Output current≤20mA
	Phase difference width		25±12.5%
	Z phase signal width		100±50%		Residual voltage	≤0.5V DC
Mechanical specification	Starting torque		≤ 0.01N · m(+20℃)	Ambient specification	Short-circuit protection	Output and power supply
	Rotor inertia		0.3 × 10-6KG·m2		Ambient temperaure	-20~+85℃
	Shaft loading	Radial	30N		Store temperature	-30~+95℃
		Thrust	20N		Ambient humidity	35~85%RH (Non Condensing)
	Max revolution		6000rpm		Dielectric strength	AC 500V (50/60Hz) for 1 min
	Cable	Material	PVC		Insulation resistance	≥ 50MΩ
		Length	2m		Anti-vibration	0.75mm amplitude at 10~55Hz*2
		Diameter	Φ 5mm		Anti-impact	490m/S2 11ms*3
	Weight		About 200g		Protection	IP54

4. Appearance and installation dimensions:

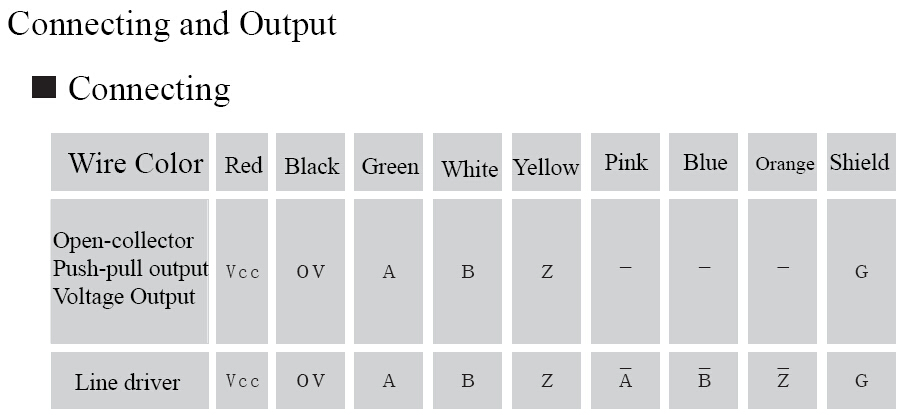

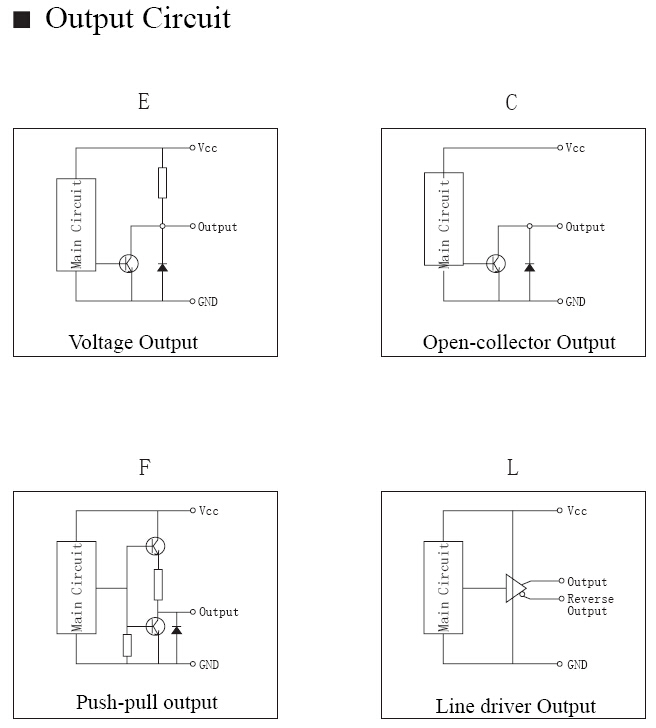

5. Connections:

6. Contact:
