1. RA(R19A) ON-OFF Rocker Switch Family Specification.
| Manufacturer | Light Country(Changshu)Co.,LTD |
| Model name | RA(R19A) rocker switch |
| Function | ON-OFF(refer more options as below) |
| Safety Approval | UL, CUL, VDE, ENEC, CQC |
| Panel Size | 21*15mm |
| Mounting Hole Size | 13*19mm |
| Electrical Rating | 6A/10 250VAC, 10A/15A 125VAC |
| Mechanical Life Endurance | 30,000 cycles |
| Electrical Life Endurance | 10,000 cycles |
| Contract resistance | <20mΩ |
| Insulation resistance | ＞1000MΩ |
| Ambient temperature | T85/T105 |
| Fire rating | UL 94V-2. UL 94V-0. Glow-wire, needle flame test |
| Material of housing | PA66/PC |
| Housing color | Black, White, Gray are available, also support customized production. |
| Actuator color | Black, White, Gray and Red are available, also support customized production. |
| Material of contacts | Silver alloy |
| Material of terminal | Copper silver plated |
| Solder ability of terminal | Max 350℃ 3S, do not apply pressure to the terminal when welding by hand. |
2. How to order RA(R19A) Rocker Switch?
Rocker switch is a highly customized parts. The part number coding rule is based on customer actual demand about switch function, component housing color, Actuator shape and color, Marking, Terminal type, Lamp voltage. Please refer to the normal choices as below and share with us your demand. We can also do customization to well support customer.
1) RA(R19A) ON-OFF Rocker Switch family functions.
| Item No. | Poles/ Throws | Rocker position |
| Left | Center | Right |
| RA1 | SPST | ON | None | OFF |
| RA2 | SPDT | ON | None | ON |
| RA3 | SPDT | ON | OFF | ON |
| RA4 | SPDT | ON | None | (ON) |
| RA5 | SPST | (ON) | None | OFF |
| RA6 | SPDT | (ON) | OFF | (ON) |
| RA7 | SPST | ON | None | (OFF) |
| RA8 | SPDT | ON | OFF | (ON) |
| RA9 | SPST with LED | ON | None | OFF |
2) RA(R19A) Rocker Switch Panel Cut-out.
| Panel cut-out |
| Z | Y | X |
| 0.7~1.25 | 12.8~12.9 | 19.2~19.3 |
| 1.25~2.0 | 12.8~12.9 | 19.3~19.4 |
| 2.0~3.0 | 12.8~12.9 | 19.5~19.6 |

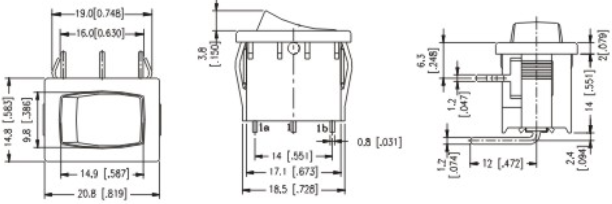

3) RA(R19A) ON-OFF Rocker Switch Family Dimension.

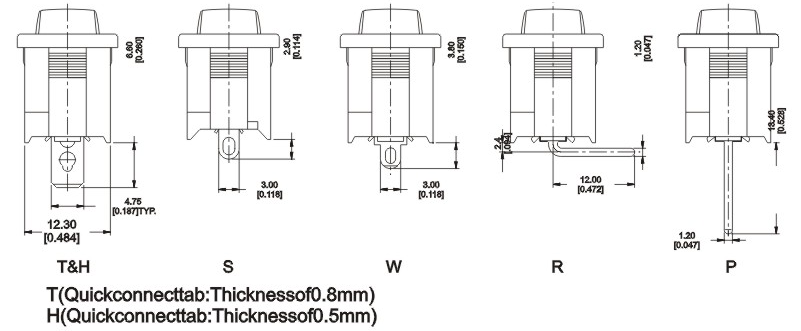

4) RA(R19A) Rocker Switch Terminal types.
3. About us.
Light Country was founded in 1985 in Taiwan.
We own two manufacturer sites in Changshu and Dongguan located in China mainland.
We have been dedicating on rocker switch and thermostat.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of R&D, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
