1. RA(R19A) mini Rocker Switch Series Specification.
| Manufacturer | Light Country(Changshu) Co.,LTD |
| Model Name | RA(R19A) |
| Panel Size | 21*15mm |
| Mounting Hole Size | 13*19mm |
| Electrical rating | 6A/10A 250V AC, 10A/15A 125V AC |
| Mechanical life endurance | 30,000 cycles |
| Electrical life endurance | 10,000 cycles |
| Safely approval | UL, CUL, VDE, ENEN, CQC, KC |
| Material of housing | PA66 |
| Housing color | Gray, White, Black are available, also support customization. |
| Press button color | Black, gray, white, red are available, also support customization. |
| Marking on button | Depend on customer's demand |
| Material of internal contacts | Silver alloy |
| Contract resistance | <20mΩ |
| Material of terminal | Copper silver plated |
| Insulation resistance | ＞1000MΩ |
| Ambient temperature | T85/T105 |
| Fire rating | UL 94V-2. UL 94V-0. Glow-wire, needle flame test. |
| Solder ability of terminal | Max 350℃ 3S, do not apply pressure to the terminal when welding by hand. |
2. RA(R19A) mini Rocker Switch function options.
| Item No. | Poles/ Throws | Rocker position |
| Left | Center | Right |
| RA1 | SPST | ON | None | OFF |
| RA2 | SPDT | ON | None | ON |
| RA3 | SPDT | ON | OFF | ON |
| RA4 | SPDT | ON | None | (ON) |
| RA5 | SPST | (ON) | None | OFF |
| RA6 | SPDT | (ON) | OFF | (ON) |
| RA7 | SPST | ON | None | (OFF) |
| RA8 | SPDT | ON | OFF | (ON) |
| RA9 | SPST with LED | ON | None | OFF |

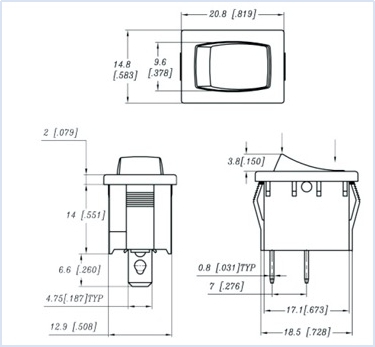

3. RA(R19A) mini Rocker Switch Dimension.

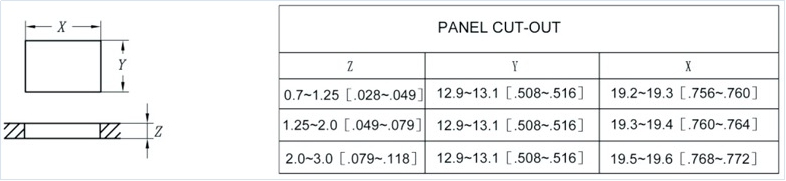

4. RA(R19A) mini Rocker Switch Panel Cut-out.

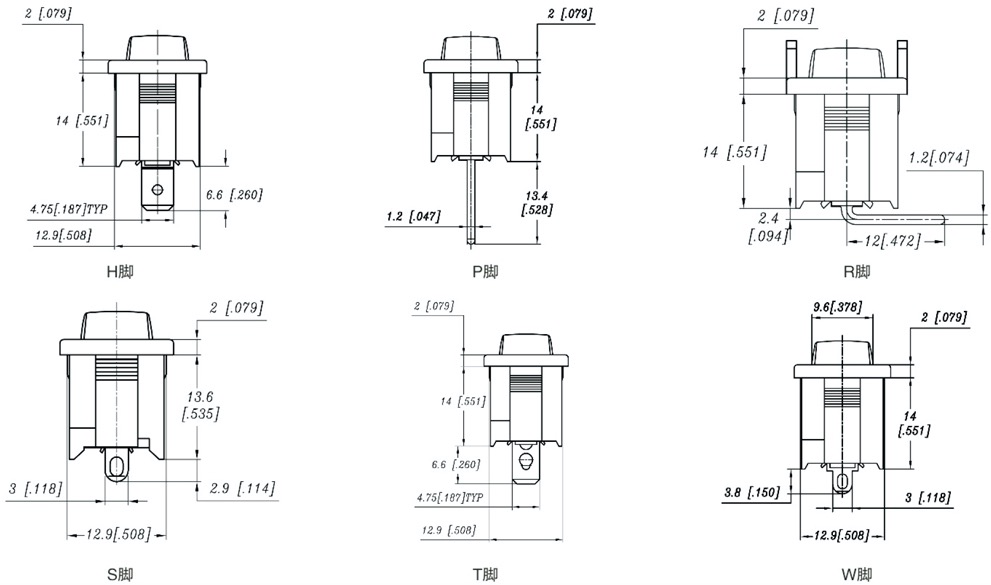

5. Terminal type.
6. About us.
Light Country was founded in 1985 in Taiwan.
We dedicate on rocker switch and thermostat.
These parts are widely used in household appliance, electrical products, industrial facilities, medical devices, etc.
To provide customer best service, we’re with integration of design, production, sales and post-sales as well.
Our factory already got ISO9001, ISO14001, IATF16949 certificates.
Our products already got CQC, UL/CUL, VDE, TUV, SEMKO, NEMKO certificates, comply with ROHS/REACH regulations.
We promise high quality products, timely delivery, attentive service, effective improvements.
